YJ-200
Features

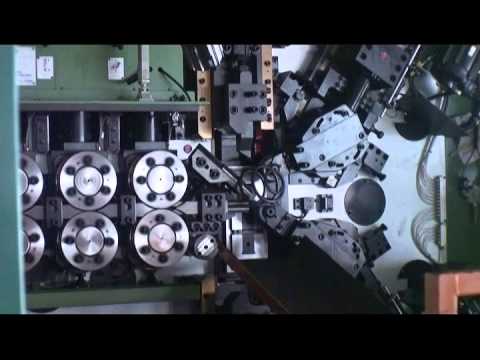

- Standard 6 axes (feeding, cutter, wedge, rear pitch, coiling x 2)
- Rigid structure and transmission for stable & consistent coiling
- Jack-like hydraulic device to clamp the arbor seat for absorbing impact force
- Hydraulic hammer for easy removal of the arbor
- Dual feed gear design to easily switch between torque/speed wire feed gears based on the need
- Yaskawa advanced servo system and Omron/Schneider electrical components
- Yaskawa Mechatronlink Ethernet (Digital) Controller
- Comply with Industry 4.0 data output and real-time production information
- Enhanced cutting force at the cutter holder for stability in cutting
- Standard tools are made of carbide, SKD11, and H.S.S steel
- Cutting: Straight cut & twist cut (small index/high tensile wire applications)
- Quick changeover from right-hand and left-hand coiling
- Patented spring software with touch screen based on Windows 10 OS
- USB device available for loading and saving the spring program
- Auto edition programming for easily setting up the spring program
Computer
- Industrial computer with SSD
- Windows OS Internet connection for remote service
- LAN connection for integration of network resource

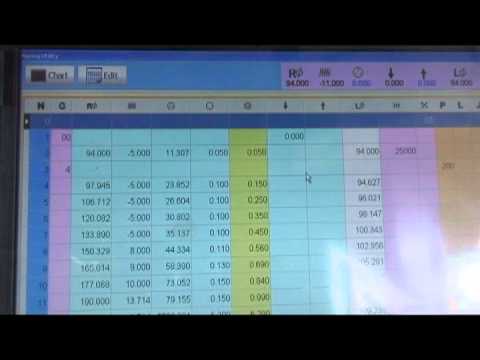

- Friendly graphical interface and chart analysis for OD, pitch, and feed
- Program generator for straight, conical, barrel, hour-glass, banana, and torsion
- 3D spring preview for indicating programming steps
- Spring coils and feed length analysis
- Safety key for security control
- Tool position record
